Real-time (Quicklook) Dst Index Monthly Plot and Table

Link to Data Center Top Page , Top Page , Last Month , Next Month [Updated at 2021-11-29 15:30UT]


                                      WDC for Geomagnetism, Kyoto
                                Hourly Equatorial Dst Values (REAL-TIME)
                                           NOVEMBER   2021
      unit=nT                                                                                      UT
      1   2   3   4   5   6   7   8    9  10  11  12  13  14  15  16   17  18  19  20  21  22  23  24
DAY
 1  -12 -11 -13 -20 -24 -24 -22 -19  -20 -20 -15 -12 -10  -7  -3   0   -2   1   5  -1   9  17  12   3
 2    1 -10 -20 -30 -29 -26 -26 -23  -19 -16 -12 -12 -16 -14 -12 -11  -14 -19 -22 -22 -21 -14 -13 -13
 3  -13 -18 -19 -19 -17 -17 -16 -16  -12 -10  -8  -9  -9 -10 -12 -11  -10 -12 -14 -10  15  -7 -32 -25
 4  -16 -32 -36 -40 -45 -53 -81 -87 -110 -96 -85 -94-109-115 -99 -91  -86 -80 -73 -68 -64 -59 -52 -52
 5  -54 -55 -52 -50 -46 -23 -20 -29  -38 -40 -42 -45 -44 -40 -38 -48  -42 -46 -50 -48 -47 -42 -34 -19

 6   -2 -14 -17 -23 -15 -20 -30 -31  -33 -34 -24 -32 -40 -39 -38 -44  -47 -45 -43 -44 -46 -44 -39 -33
 7  -24 -16 -29 -28 -33 -34 -33 -34  -37 -38 -36 -35 -32 -29 -27 -27  -27 -28 -29 -29 -29 -29 -28 -28
 8  -29 -30 -28 -27 -25 -24 -22 -21  -21 -21 -19 -15 -14 -18 -21 -22  -22 -22 -21 -19 -20 -20 -20 -21
 9  -26 -24 -27 -28 -29 -31 -29 -30  -29 -27 -25 -27 -27 -27 -26 -26  -22 -19 -19 -19 -19 -24 -27 -26
10  -30 -33 -31 -29 -28 -30 -30 -29  -31 -31 -29 -24 -23 -26 -27 -26  -25 -24 -21 -20 -22 -21 -21 -23

11  -24 -24 -20 -21 -20 -19 -17 -17  -16 -19 -17 -18 -12 -12 -11  -8   -7 -10 -12  -9  -7 -10 -15 -16
12  -16 -17 -23 -25 -24 -23 -16 -12  -12 -11 -11 -11 -10 -13 -16 -15  -16 -17 -19 -18 -17 -17 -16 -16
13  -18 -20 -20 -19 -17 -17 -15 -15  -12 -10  -8  -8  -7  -8  -9  -8   -9 -10 -11 -10 -10 -14 -11  -9
14  -11 -11 -10 -13 -15 -14 -12 -10   -7  -7  -5  -4  -5 -10 -13 -13  -13 -16 -18 -17 -16 -15 -14 -12
15  -11 -11 -12 -12 -12 -11 -11 -12  -12  -9  -7  -4  -2  -5  -5 -10  -14  -9   3   6  -1 -11  -8  -6

16   -9 -18 -13 -15 -30 -30 -21 -21  -19 -20 -23 -21 -20 -19 -16 -21  -24 -21 -15  -9 -12 -14  -7  -9
17  -12 -15 -14 -13 -13 -16 -18 -16  -11 -14 -11 -17 -18 -18 -20 -18  -16 -18 -19 -15 -13 -14 -15 -13
18  -13 -14 -12 -12 -14 -19 -21 -18  -16 -17 -15 -16 -14 -13 -15 -17  -16 -16 -16 -14 -14 -16 -17 -20
19  -18 -16 -13 -12 -13 -13 -13 -14  -14 -13 -12 -12 -13 -14 -15 -15  -12 -12 -11  -7  -5  -4  -3  -3
20    1  -3  -3  -3  -3  -7  -5  -8   -8  -5  -3  -6  -5  -9 -11 -14  -16 -15 -12 -13 -14 -17 -13  -8

21   -9 -11 -10  -9 -10  -8  -7  -8  -10 -14 -10  -9  -9  -7 -11 -12  -13 -12 -12 -10 -11 -10 -10 -11
22  -12 -14 -15 -16 -16 -17 -14 -12  -12 -10 -10  -7  -7 -10 -13 -16  -18 -18 -18 -17 -17 -19 -19 -17
23  -16 -15 -14 -12 -12 -12  -9  -8  -11 -15 -12 -11 -12 -14 -20 -25  -26 -26 -25 -22 -20 -22 -19 -18
24  -14 -16 -15 -14 -17 -16 -14 -13  -10  -9 -10  -7  -6  -9 -13 -13  -15 -12  -8  -7  -8 -10 -11 -10
25  -10 -10  -9 -12 -18 -20 -19 -17  -18 -16 -16 -13 -13 -16 -18 -18  -18 -18 -18 -16 -17 -16 -15 -14

26  -13 -15 -17 -18 -17 -15 -14 -12   -8  -6  -3  -1  -2  -6  -5  -5   -7  -6  -4   0  -2  -2  -2  -3
27   -2  -5  -7 -10 -11 -11 -12 -13   -9  -5  -5  -4  -5 -10 -14 -16  -18 -17 -17 -13 -12 -11  -6  16
28   13   7   0 -10  -5  -4   2   4    6   7   5   0   1   0  -5  -4   -1  -3  -3  -1   1 -10  -8 -14
29  -24 -28 -34 -38 -37 -33 -26 -23  -23 -22 -23 -24 -23 -20 -23 -29 99999999999999999999999999999999
30 99999999999999999999999999999999 99999999999999999999999999999999 99999999999999999999999999999999

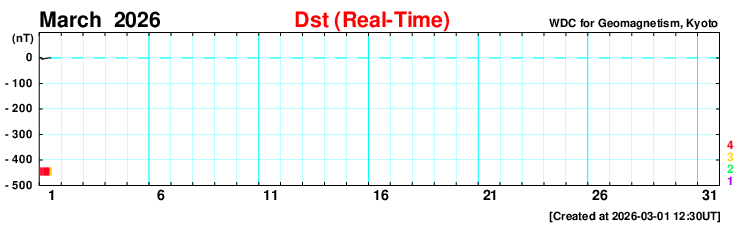

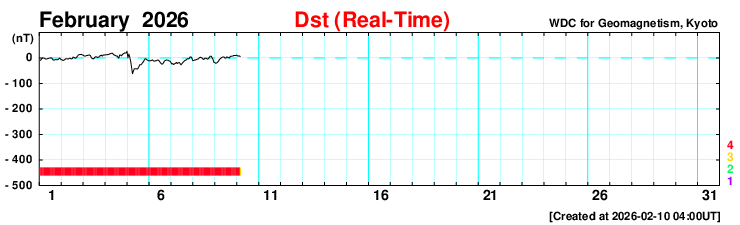

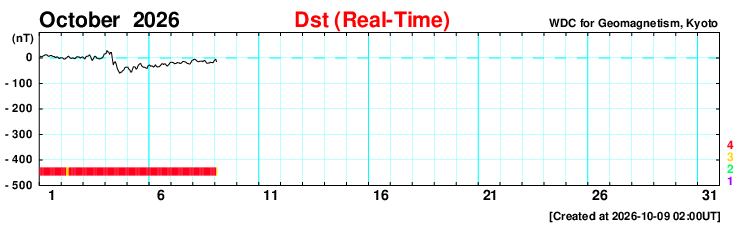

The number of stations used to derive the index is shown with the colored bar at the bottom of the plot. The color notation is displayed on the right of the plot. The user should also note that the real-time Dst indices could contain artificial noises and baseline shifts because the index is derived from raw data without visual checks and correction. The Dst stations and the WDC/Kyoto takes no responsibility for any inconvenience caused by this data.
